Spec

• - Output Power 100mW
• - Adaptive FHSS 2.4GHz
• - Band Scan Function
• - Bi-Direction System

Applications

• - Data modem
• - Consumer electronics
• - Wireless sensor networks
• - Industrial Control and Monitoring
• - Home/building automation
• - Earthquake alarm system
• - RC Toy, Drone

특징

• ▣ Complete ISM module
• ▣ 50 x 35 x 3 mm, compact shielded module for Dip mounting
• ▣ Ideal for battery operated application
• ▣ Long communication distance range over 1Km
• ▣ Dynamic power configuration: 0dBm ~ 20dBm, software controlled
• ▣ Industrial operating temperature range –40 to 85°C
• ▣ Operating voltage 1.7 ~ 5.5V
• ▣ Compact size

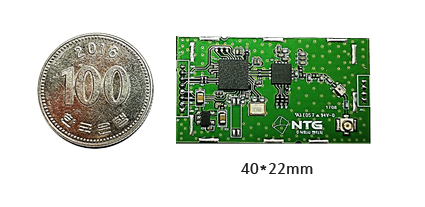

     - Size 40±0.1mm x 22±0.1mm
     - Height 3.0±0.2mm
• ▣ RoHS compliant

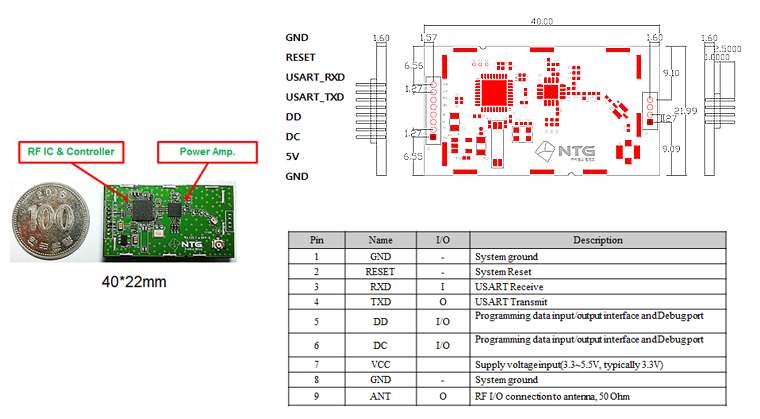

Hardware Overview

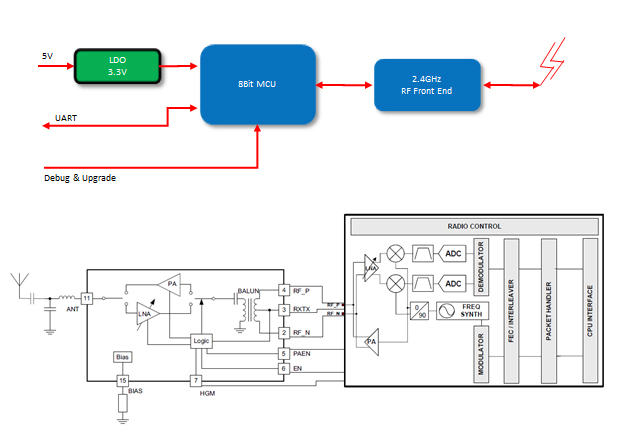

Block Diagram
